Compare safety, access and range of costs fairly for 20 years. Choose the correct dry deck fountain for congested plazas.
The majority of plaza fountain guides are incorrect. The larger a pond or pool is, the less likely it is to be a safe water feature. A dry deck fountain keeps all parts dry and below grade, so the deck continues to be walkable, dry and open. When the basin ceases to exist, safety, cost and access change.
We are called when the honeymoon is over, not when the ribbon is cut. A raised basin looks good on the first day. After two winters the coping is chipped, a grout line is popped and somebody has dropped a scooter in the water.
The majority of it is caused by standing water. That volume sits year-round in a traditional pool fountain, in a public space, with no one watching at 2am. Water evaporates. Litter collects. In July, algae blooms are observed. In January, ice causes slower, patient damage.
A dry fountain takes the pond away. The nozzles and lights reside beneath the granite or slotted stainless, and there is water only during the show. Pumps cease working and the plaza falls back to its own state, of only being a plaza.
Then there is the math of the footprint, and hardly anyone ever runs it early enough. Enclose a 4,300 square foot (400 m²) basin and 4,300 square feet of civic space has been lost for the life of the building. Planners notice that number. It is noticed by retail tenants even faster.
Warning: A standing pool of water in an otherwise unsupervised public area involves additional barrier, depth and signage requirements. Check with your local authority before you draw, not after you pour the slab.
The deck is built over a full mechanical room consisting of pumps, filtration, solenoid valves, LED drivers and a balance tank, placed either in an integrated vault underneath or in a separate chamber attached to the deck. The smallest and most inexpensive component in all dry deck fountain systems is the jet.
Two configurations dominate. Water level and pressure are handled well by separate balance tanks, but at the expense of plan area, which is not easy on a tight urban site. The integrated type keeps everything under the deck, making it space efficient and shortening pipe runs, while requiring better detailing of waterproofing.
The one thing that each of the projects we have handed over cleanly had in common is that the fountain team and the civil team were reading the same dry deck fountain section drawing. If the shop drawings that are received are a dry deck fountain dwg from a library, anticipate change. Slabs penetrate the wrong place, and concrete does not respect your program.

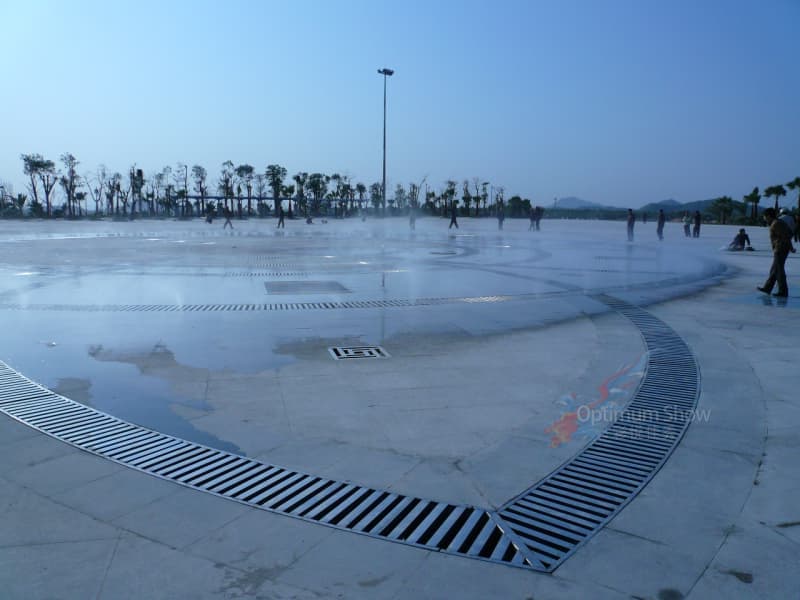

Request a true dry deck fountain detail at the grating edge. The seepage point between the paving and the collection channel is the first-place water escapes and the beginning place of trip hazards.
| Below-Deck Element | Typical Figure | What Fails Without It |
| Grating slot width | 8 to 12 mm | Heels, canes and stroller wheels drop in |
| Deck fall to channel | 1:100 or more | Puddles persist; surface remains slick |
| Vault clear height | 6.0 to 7.2 ft (1.8 to 2.2 m) | Crews are not able to stand, so service is skipped |
| Balance tank volume | 15% to 20% of circulating volume | Pumps cavitate and burn out |
| Pedestrian load rating | 100 lb/ft² (5 kN/m²) | Slab cracks when event crowds walk over it |
We offer eight comparisons that affect almost all projects we quote. Read them in order.

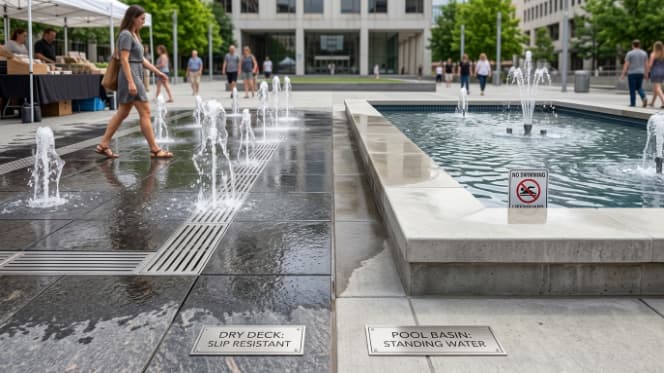

Both sides absorb the water. Only one gets walked on, in sandals, by thousands of people, while it is wet. The grips are better on flame textured granite and slotted stainless than on polished basin coping.
Basins keep water permanently, so the related risks of drowning, barrier rules and insurance premiums all follow. Flushing the deck to a covered tank clears this danger within seconds after shutdown, between shows. This one change suddenly alters the entire risk profile of civic clients.
Both systems place power near water. There is a greater requirement for pedestrian access on decks, increasing the need for grounding, bonding and enclosure ratings. Fountains are directly addressed in NEC guidance Article 680, and that guidance should be included within your specification.
Owners believe that nozzles determine the price. They rarely do. Excavation, waterproofing, valve chambers, drainage and structural coordination take the largest part of a deck budget, while a basin reallocates that same money into tiling, coping and edge detailing.
Covered storage cuts evaporation significantly against an open basin sitting in desert sun. Both recirculate, so consumption comes from drift, splash-out and backwash rather than from the show itself.
Here the deck comes out on top. With the jets off, the surface takes market stalls, queues, prayer crowds, or even a temporary stage. A basin stakes its claim on its site forever and deters pedestrian movement around it, subtly reducing the leasable value of the frontages around it.
Basins make it easy for the crews to operate on the edge with the water out of the basin. Decks require pre-planned access to chambers, and if that is not planned for, the paving needs to be lifted to remove a jammed valve. The right vault design can make the difference between two days of work and two hours.
The fountain deck is a programmable fountain, with concerts held on Friday and water shows held on Saturday. Basins are not like that and cannot bend. For a commercial developer playing for that footfall, the flexibility alone often justifies the civil spend.
There are flush installs that do not perform the same function, and choosing the wrong family is more expensive than choosing the wrong brand.
Quiet and precise, jumping jet decks throw a clear arc across the surface and are perfect for the hotel forecourt. Running jet rings are arranged consecutively around a circle for good balcony readability. All of the chase effects, explosive bursts and smooth height changes are achieved with one piece of hardware, a Running Jets Fountain with solenoid and variable frequency control.
At the opposite end, interactive play decks are offered. Reduced pressure, greater filtration, higher drainage speeds and much more stringent chemistry. Advice in the CDC Model Aquatic Health Code considers interactive water features to be a separate category in the United States, so be careful not to commit to any promises when discussing with parents.
There are also hybrids in the middle, with a flush deck and a shallow reflecting edge. Attractive, and less easy to drain.
Design thoughts for any kind of fountain, particularly dry deck fountain design for a dry deck area, should begin with the crowd and not with the list of effects that will be obtained. Think about two things up front. How many hours will people be standing on this surface, and how many of them will be allowed to become wet?
Those answers drive nozzle selection, the type of grating and the size of filtration far more than any aesthetic preference. A search of "floor fountain dry deck" and of "dry deck fountains" yields the same set of results, and that should give you an idea of how loosely these terms are used in the marketplace.
For deck fountain ideas that last for more than 10 years, look at completed work and not at renders. A Floor Fountain installation from Qingyuan Nanan Park covers an area of 1,246 square meters, has a central jet of 30 meters, and is still used as ordinary park paving four nights a week.
Cheap systems show themselves in terms of material choice, typically during season two.
At least 304 stainless steel for the nozzle, and 316 is preferred by coastal areas. Brass performs gorgeously and patinas in an unplanned manner in public environments. Plastic does not belong under a plaza; it belongs in a garden.
Knowing the water fountain nozzle types can really save at the tender stage. Tunner Effect Laminar Jets require very high levels of filtration and exact pressure, but none other creates that glass like arc. Foam nozzles aerate the stream, making it more visible and helping it maintain its shape when exposed to wind.
Multiple angles are interlaced by crown units, with a rotating Crown Jets Nozzle creating movement that simply cannot be faked by a fixed head. Every dry deck fountain nozzle we specify is accessible from the top, without having to lift any of the paving stone.
Cleaning is also a part of sound fountain nozzle design. Scale grows quickly where hard water accumulates, and a head that cannot be reached is a head that nobody cleans.
Pro Tip: Order 5% spare nozzles with the original shipment. Pursuing a replacement fountain dry deck part three years later yields greater downtime cost than the original spares cost at the start.

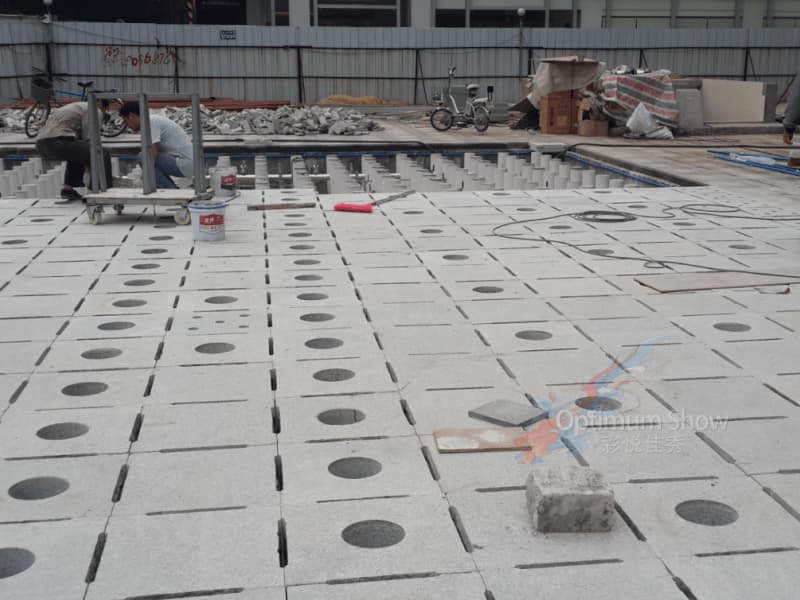

The visible load is resisted by the grating and the paving. Stainless bar grating drains quickly and reads contemporary. Granite containing drilled orifices has a less turbulent appearance and is more compatible in traditional landscapes.
If crews are looking for "hardware sealants fountain dry deck", they are typically concerned with the joint sealant at that edge of paving, and the truth is that the sealant does not matter as much as the fall you built under it.
Dry deck fountain installation has more failures on the sequence than on the equipment.
Timelines are determined more by site readiness than by manufacturing. Small courtyard decks run 2 to 3 months from contract to opening. Four to six months is used for mid-size commercial systems. A site that requires a new watertight basin adds a further 4 to 10 weeks before installation can start.
Getting the Size Right First
People are continually searching for answers to questions such as size fountain dry deck and dimensions fountain dry deck, and there is no universal answer. All that is downstream depends on the jet height, and the jet height depends on the viewing distance.
For hotel entries, where people are standing 15 to 30 ft away, a small fountain dry deck of 30 nozzles is appropriate. A large fountain dry deck needs the audience standing back far enough to read the pattern from a distant location. The square surrounding our Turkestan lotus is enormous, which is why that project takes up almost 4,000 square meters.
| System Scale | Typical Budget Range | Realistic Delivery |
| Courtyard or entrance deck | $10,000 to $50,000 | 20 days |
| Mall atrium or plaza system | $100,000 to $300,000 | 25-35 days |
| Landmark multimedia deck | $500,000 and above | 35-55 days |
Retail Searches That Lead Nowhere
Take out half of the confusion in this marketplace with search results. Enter "Walmart fountain dry deck" or "Home Depot fountain dry deck" and you will have garden ornaments. Search for "eBay fountain dry deck" and you will receive pump parts. If you are looking for a "fountain dry deck under $150" then it is a completely different product category, and there is no harm in naming that plainly.
This is also true with terms that sit next to each other. The search term "backyard fountain dry deck" brings up residential kits. "Pond fountain dry deck" returns aerators for still water. Wall fountain dry deck and freestanding fountain dry deck bring back decor.
Go online and look at listings for "outdoor fountains & waterfalls fountain dry deck" and you are in the ornamental aisle. Even drinking fountains fountain dry deck surfaces bubblers, which share nothing with a show system other than a word.
A DIY fountain dry deck is good at garden size. Public loading, code compliance and choreographed control are another world.
Type the words "fountain dry deck nearby" into the search engine and it is unlikely to return an engineering partner, because the industry ships all over the world and the installation is done with traveling engineers.
More effective questions: request to see work done at your size and in your environment. Inquire about who programs the show. Inquire about what happens in year six. Anybody can share a line item for a "fountain dry deck for sale" or a seasonal "fountain dry deck sale", but very few people will disclose their annual failure rate.
Going through reviews fountain dry deck customers post openly will help slightly, though most large jobs go without any reviews at all. Designers often show us a Fontana fountains catalogue with the names of the effects they are looking for, which is a pretty good way to tell someone what you want.
Price fountain dry deck quotes will be wildly different because some contractors do more civil work than others, so compare the work line by line rather than the overall totals.
There is no one best dry deck fountain, and any individual who states otherwise is selling stock. Similarly, when you put "best fountain dry deck" into a search engine, you get brochures and not engineering. You are purchasing 20 years of somebody's after-sales behavior when you buy fountain dry deck equipment.
Prior to signing, one true caveat about an outdoor fountain dry deck. It cannot create the calm mirror effect you enjoy in a reflecting basin between performances, and a walkable fountain will not carry very high jets, since the water has to drain away from the deck. There are sites where the basin is truly needed. That is a fair call.
Yes, if the pressure of the jet and the filtration are indicated for body contact. Interactive decks should be equipped with low pressure heads, UV or chlorine treatment, and drainage quick enough to clear standing puddles between shows.
The typical start for small commercial decks is $50,000, with plaza and mall systems ranging from $200,000 to $800,000. That number changes most with underground construction scope, the number of jets used, and control complexity.
Yes, as long as the structure is designed for it. The meaningful difference between vehicle-rated decks and pedestrian only decks is the increased cost of a slab meeting highway loading, thicker grating and greater pavement depth.
Most public installations require pump inspection monthly and nozzle cleaning quarterly. In hot climates, water chemistry requires attention weekly, because where evaporation is greatest, so is the accumulation of scale.
Typically, yes, primarily by decreasing evaporation. The water is not kept in an open basin but in a covered tank, though there is still actual water loss from wind drift and splash out on exposed sites.
In every cost line we have examined, the assertion holds true that enlarged water-boxes do not make public water safer. A dry deck fountain trades visible water for usable ground, cleaner safety math and easier service access. Speak to the Optimum Show engineering team beforehand, before your slab takes concrete form.
